Processor | Up to Dual Intel® Platinum, Gold, Silver, and Bronze (up to 28 cores, up to 3.6 GHz per CPU) |
Operating System* | - Windows 10 Pro 64-bit (preload)
- Windows 10 Pro for Workstation (upgradeable via Microsoft)
- Ubuntu Linux (preload)
- Redhat Linux (certified)
|
Power Supply | |
Graphics | Up to 2 x NVIDIA® Quadro® GP100 / P6000 / RTX 6000 |
Memory | - Up to 384 GB RDIMM 2666 MHz DDR4, 12 DIMM slots
- 8 GB DIMM capacity
- 16 GB DIMM capacity
- 32 GB DIMM capacity
|
Max Storage | - Up to 12 total drives
- Up to 4 internal storage bays
- Max onboard M.2 = 2 (2 TB)
- Max 3.5" HDD = 6 (60 TB)
- Max 2.5" SSD = 10 (20 TB)
|
RAID | 0, 1, 5, 6, 10 |
Removable Storage | - 9-in-1 media card (standard)
- 15-in-1 media card reader (optional)
- 9.5 mm Slim ODD (optional)
|
Chipset | Intel® C621 |
Storage | - 3.5" SATA HDD 7200 rpm up to 10 TB
- 2.5" SATA HDD up to 1.2 TB
- 2.5" SATA SSD up to 2 TB
- M.2 PCIe SSD up to 1 TB
|
Ports | - 4 x USB 3.1 Gen 1** (Type A)
- Microphone
- Headphone
- 2 x USB-C/Thunderbolt 3 (optional)
|

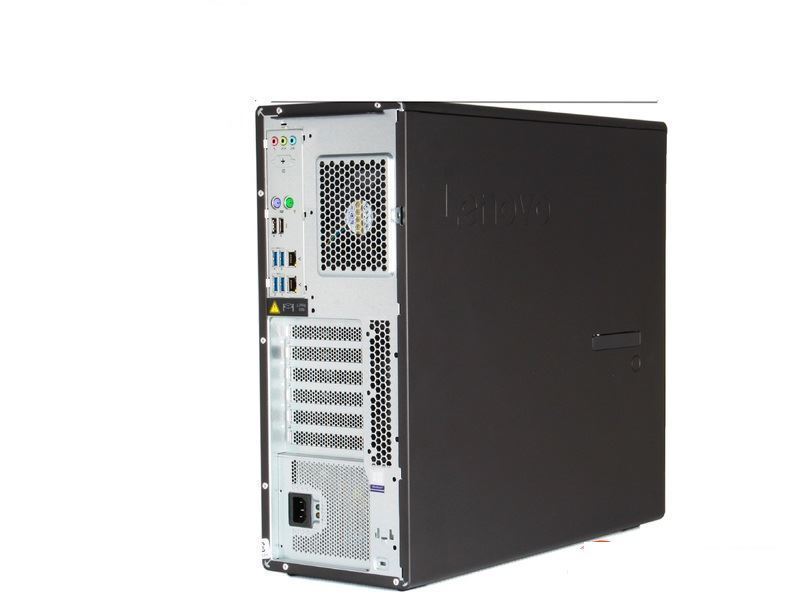

Rear Ports | - 4 x USB 3.1 Gen 1** (Type A)
- 2 x USB 2.0
- USB-C (Optional)
- Thunderbolt 3 (Optional)
- Serial
- Parallel
- 2 x PS/2
- RJ45 Gigabit Ethernet
- Audio line-in
- Audio line-out
- Microphone-in
- eSATA (optional)
- Firewire (optional)
|
WiFi | - Intel ® Wireless – N 7260 AC
- 802.11 a/c, (2x2), 2.4 GHz / 5 GHz + Bluetooth ® 4.0
|
Expansion Slots | - 3 x PCIe x16
- 1 x PCIe x8
- 1 x PCIe x4
- 1 x PCI
|
Dimensions (W x D x H) | 6.9” x 19.1” x 17.6” (175.0 mm x 485 mm x 446 mm) |
