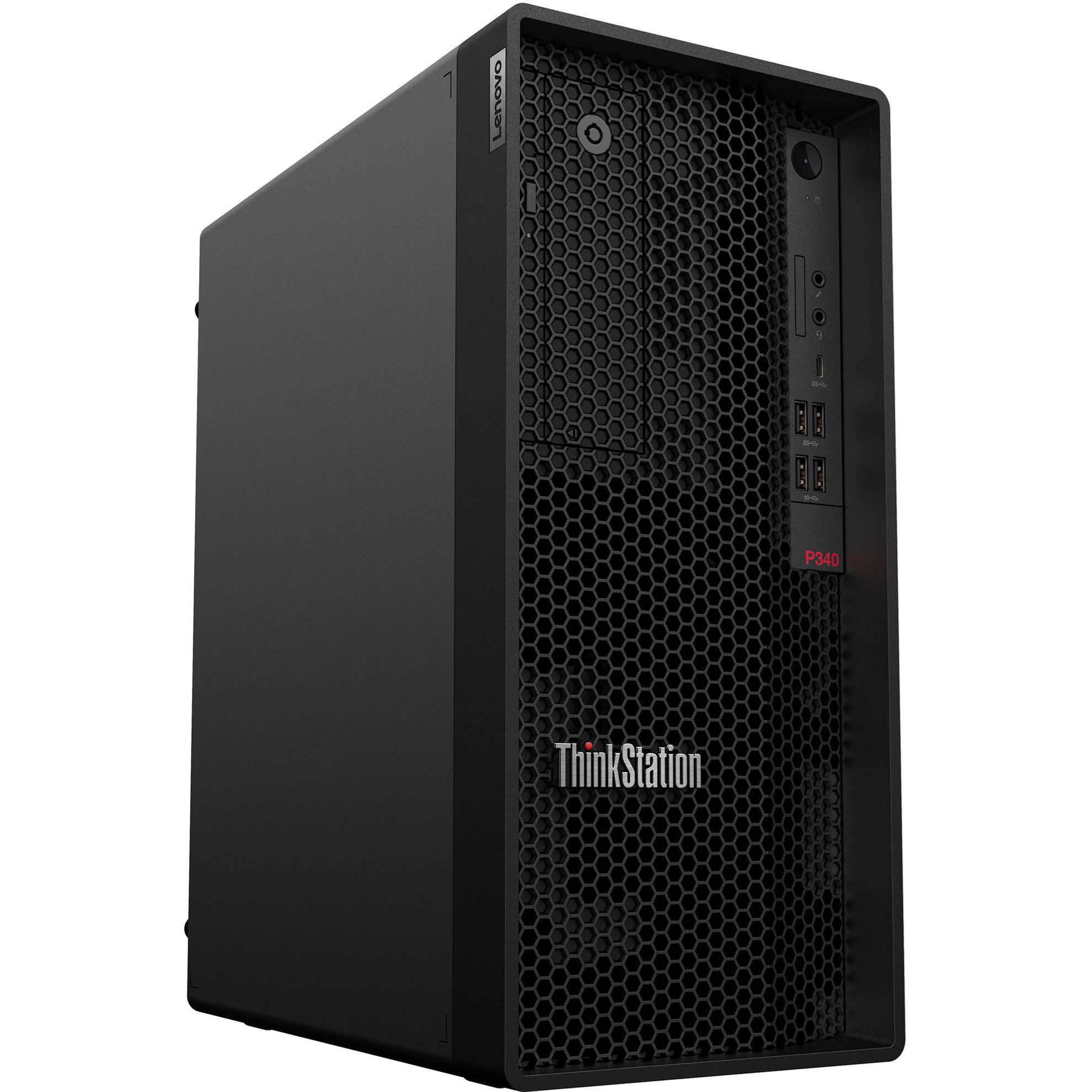

ThinkStation P340 Tower Workstation W-1270

  • Intel Xeon W-1270 (3.40 GHz, 8C/16T, 16MB)
  • Chipset: Intel W480 chipset
  • 16GB (2 x 8GB) DDR4 2933 UDIMM Memory
  • NVIDIA Quadro P620 2GB (4x Mini DP)
  • 256GB M.2 PCIe SSD, OPAL
  • 1TB Hard Drive, 7200RPM, 3.5", SATA3
  • Onboard Intel RST RAID: M.2: 0/1, SATA: 0/1/5/1
  • Ethernet: Gigabit Ethernet, Intel Ethernet Connection I219-LM
  • Explansion Slots: PCIe 3.0 x16, PCIe 3.0 x1, PCIe 3.0 x4
  • Storage: 2x 3.5" SATA/SSD HDD + 4x M.2 PCIe SSD Support
  • USB Traditional Keyboard - English & USB Mouse
  • OS License : No OS
  • Power Supply: 500W Fixed 92% 80 PLUS
  • Form factor: Tower
  • Warranty: 3 Year Onsite
Manufacturer: Lenovo
€930.21 (Giá đã có VAT)
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Processor
  • Up to Intel® Xeon® W-1290P with vPro™ (3.70GHz, up to 5.30GHz with Turbo Boost, 10 cores, 20MB Cache)
  • Up to 10th Generation Intel® Core™ i9-10900K Processor with vPro™ (3.70GHz, up to 5.30GHz with Turbo Boost, 10 cores, 20MB Cache)
Operating System
  • Windows 10 Pro for Workstations
  • Windows 10 Pro
  • Ubuntu® Linux®
  • Redhat® Linux® (certified)
Graphics
  • Integrated Intel® UHD Graphics 630
  • NVIDIA® Quadro P400 2GB
  • NVIDIA® Quadro P620 2GB
  • NVIDIA® Quadro P1000 4GB
  • NVIDIA® Quadro P2200 5GB
  • NVIDIA® Quadro RTX4000 8GB
  • NVIDIA® Quadro RTX5000 16GB
ChipsetIntel® W480
Memory
  • 8 GB DDR4 2667MHz
  • Up to 128GB DDR4 2933MHz
  • UP to 128GB DDR4 2933MHz ECC
Storage
  • Up to 4 x 2TB M.2 PCIe SSD, and
  • Up to 2 x 4TB 3.5” HDD or up to 2 x 1TB 2.5” SSD
RAIDM.2: 0/1
SATA: 0/1/5/10
Connectivity
  • Intel® WiFi 6™ AX201 802.11AX (2 x 2) & Bluetooth® 5.0 (Optional)
  • Intel® WiFi 6™ AX201 802.11AX (2 x 2) & Bluetooth® 5.0 with vPro™ (Optional)
Security
  • Trusted Platform Module (TPM 2.0)
  • Self-healing BIOS
  • Supervisor, SMP and power-on passwords
  • Electronic lock support
  • Chassis intrusion detection
  • UEFI secure boot support
  • HDD password protection for HDD Data
  • Windows UEFI firmware update support
  • Device Guard Support
  • Optional: Access panel lock, Kensington lock slot, pad lock slot, BIOS guard, boot guard
Ports & SlotsFront:
  • 2 x USB 3.2 Gen 2 Type-A
  • 2 x USB 3.2 Gen 1 Type-A
  • USB 3.2 Gen 1 Type-C
  • Audio jack
  • Mic jack
Rear:
  • 2 x USB 2.0 Type-A
  • 2 x USB 3.2 Gen 1 Type-A
  • Audio (line out)
  • 2 x Display Port (3rd DP optional)
  • RJ45 (1GB Ethernet)
  • Serial port (2nd serial optional)
  • Thunderbolt (optional)
Explansion Slots
  • PCIe 3.0 x16
  • PCIe 3.0 x1
  • PCIe 3.0 x4
Dimensions (H x W x D)6.7" x 12.4" x 14.8" / 170mm x 315.35mm x 376mm
WeightMax configuration: 20.7lbs / 9.4kg
ISV Certifications
  • Altair® HyperWorks
  • ANSYS® ANSYS
  • Autodesk® Alias/VRED, AutoCAD, Inventor, Revit
  • Avid® Media Composer
  • Bentley® MicroStation
  • Dassault® 3DEXPERIENCE, SOLIDWORKS
  • Nemetschek® Vectorworks
  • PTC Creo®
  • Siemens® NX, Solid Edge, Teamcenter, Tecnomatix
  • Barco Medical Displays
  • McKesson Medical Imaging
Green Certifications
  • ENERGY STAR® 8.0
  • EPEAT™
  • GREENGUARD
  • RoHS Compliant
  • 80 PLUS Platinum (500W)
  • 80 PLUS Gold (300W)
Power Supply Unit
  • 300W (90% efficient)
  • 500W (92% efficient)
More Information
*Not all specs available on lenovo.com

Specifications may vary depending upon region.

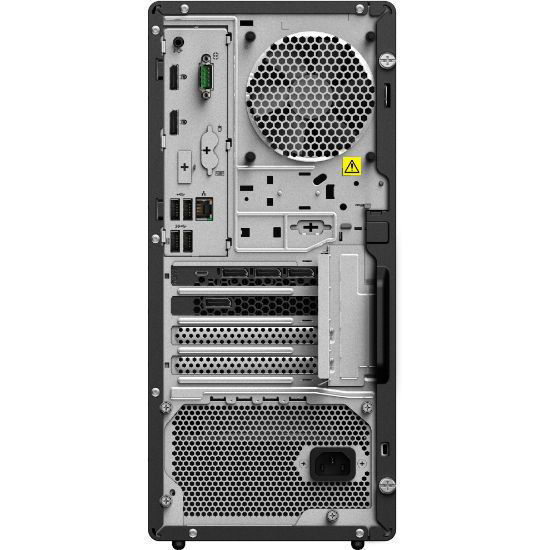

Ports

ThinkStation P340 Tower workstation ports
  • 1. Power button
  • 2. Optional: Slim DVD ROM
  • 3. 3-in-1 card reader
  • 4. Mic
  • 5. Headphone / mic jack
  • 6. USB 3.2 Gen 1 Type-C
  • 7. 2 x USB 3.2 Gen 1 Type-A
  • 8. 2 x USB 3.2 Gen 2 Type-A
  • 9. Serial
  • 10. Audio (line out)
  • 11. 2 x Display Port™
  • 12. Optional: PS/2
  • 13. Optional: HDMI/DisplayPort™
  • 14. RJ45 (1GB Ethernet)
  • 15. 2 x USB 2.0 Type-A
  • 16. 2 x USB 3.2 Gen 1 Type-A
  • 17. Optional: PCIe card slots (varies with configuration)
