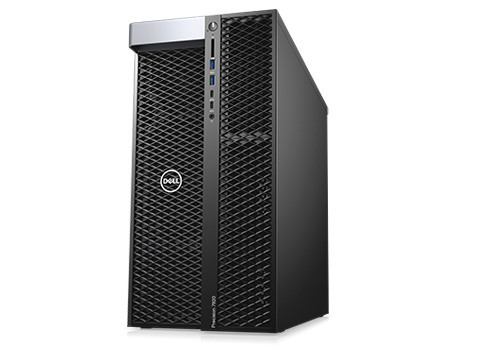

Precision 7920 Tower Workstation Silver 4116

  • 1 x Intel Xeon Silver 4116 2.1GHz, 3.0GHz Turbo,12C, 9.6GT/s 2UPI, 16MB Cache, HT (85W) DDR4-2400
  • 32GB (4x8GB) DDR4 2666MHz RDIMM ECC
  • Hard Drive: 2.5" 512GB SATA Class 20 Solid State Drive
  • 2nd Hard Drive: 3.5" 2TB 7200rpm SATA Hard Drive
  • Integrated Intel AHCI SATA chipset controller (6.0Gb/s), SW RAID 0,1,5,10
  • NVIDIA® Quadro® P4000, 8GB, 4 DP (7X20T)
  • Integrated: Intel® i219 & i210 Gigabit Ethernet controllers
  • Slots: All slots PCIe Gen 3: (2) PCIe x16, (2) additional x16 slots with 2nd CPU; (1) PCIe x8 open ended, (1) x16 wired as x 4, (1) x16 wired as x1
  • 4 x 2.5”/3.5” SATA HDD/SSDs
  • 8x Slimline DVD-ROM Drive
  • Dell Multimedia Keyboard Black (English) & Dell Optical Mouse Black
  • Power Supply: 1400W –90% efficient (80PLUS Gold Certified)
  • Chassis: Dell Precision Tower. Optional 19” rackmount rail kit
  • OS License : Windows 10 Pro for Workstations (up to 4 Cores) English
  • Warranty: 3 Year ProSupport and NBD On-site Service
Nhà sản xuất: Dell
Gọi để biết giá
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Processor

  • One or two Intel® Xeon® processor Scalable family CPUs with up to 28 cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro™ technology

Operating System

  • Windows 10 Pro (64 bit)
    Enterprise Linux® 7.3
    Ubuntu Linux 16.04
    NeoKylin 6.0 SP3 (China only)

Chipset

  • Intel® C621 (Lewisburg)

Memory1

  • Six channel memory up to 1.5TB 2667MHz DDR4 ECC memory with dual CPUs, up to 3TB with select CPU SKUs

    24 DIMM Slots (12 DIMMs per CPU). Note: memory speed is dependent on specific Intel® Xeon® Processor Scalable processor installed

Video Card

  • Support for 4 PCI Express® x16 Gen 3 graphics cards, 1 - up to 750W with maximum of 3 x 250W double width graphics cards in 3 slots (dual CPU configuration) and up to 2 x 375W cards 220VAC input supply recommended for 750W configurations and some restrictions apply

    High end 3D cards:
    Radeon™ Pro WX 9100
    Radeon™ Pro SSG (future)
    NVIDIA Quadro GP100
    NVIDIA Quadro P6000
    NVIDIA Quadro P5000

    Mid-range 3D cards:
    Radeon™ Pro WX 7100
    Radeon™ Pro WX 5100
    Radeon™ Pro WX 4100
    NVIDIA Quadro P4000
    NVIDIA Quadro P2000

    Entry 3D cards:

    Radeon™ Pro WX 3100
    Radeon™ Pro WX 2100
    NVIDIA Quadro P1000
    NVIDIA Quadro P600
    NVIDIA Quadro P400

    Professional 2D cards:
    NVIDIA NVS 310

Hard Drive

  • Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 8 drives with rear FlexBays populated with integrated Intel SATA controller.
    Up to 10 x 2.5”/3.5” SATA/SAS drives - requires the Broadcom MegaRAID 9460-16i controller.
    Up to 4 front accessible (hot plug) M.2 NVMe PCIe SSDs in FlexBays on enabled PCIe chassis with integrated Intel controller (>2 drives requires dual CPUs. NVMe RAID 0,1 option (Intel RSTe vROC).
    Dell M.2 carrier with PCIe SSD for PCIe FlexBay available as customer kit.
    Up to 8 x M.2 NVMe PCIe SSDs via 2 x Dell Ultra-Speed Drive Quad x16 cards (maximum requires dual CPUs), NVMe RAID 0,1,10 option on 1st card (Intel RSTe vROC).
    M.2 NVMe PCIe SSDs
    Up to 8* x 1TB drives on 2 Dell Precision Ultra-Speed Drive Quad x16 cards. *Requires dual CPU config.
    Front FlexBay M.2 NVMe PCIe SSDs
    Up to 4* x 1TB drives, 2 drives per CPU. *Requires dual CPU config.
    2.5” SATA SSD
    Up to 10 x 1TB drives
    2.5” SAS SSD
    Up to 10 x 800GB drives
    3.5” SAS 7200 RPM 12Gb/s
    Up to 10 x 4TB
    2.5” SAS 10K RPM 12Gb/s
    Up to 10 x 1.8TB
    2.5” SAS 15K RPM 12Gb/sUp to 10 x 900GB 2.5” Self Encrypting Drives512GB 2.5” SED (OPAL/ FIPS (140-2) HDDM.2 PCIe SED SSD512GB and 1TB

Chassis

  • Bays: (4) FlexBays and (1) 5.25” FlexBay supporting up to 10 x 3.5” or 2.5” drives (with MegaRAID 9460i-16 controller)
    (1) Slimline optical bay option adjacent to 5.25” bay; Available 2nd 5.25” bay – consumes/converts 2 FlexBays, (1) SD slot UHS ll Class 3 with read only support (SW enabled). Available PCIe chassis with PCIe FlexBays supporting M.2 NVMe PCIe SSDs and future U.2 NVMe PCIe SSDs. PCIe FlexBay customer kit available

Ports

  • Front
    2 USB 3.1 Type A
    2 USB 3.1 Type C
    1 Universal Audio Jack
    Up to 4 PCIe slots in PCIe enabled chassis for M.2 and U.2 (future) PCIe SSDs

    Internal
    1 USB 2.0
    1 USB 2.0 header. (requires 3rd party splitter cable to support 2 x USB 2.0 Type A ports)
    8 SATA @6Gb/s plus 1 SATA for optical

    Rear
    6 USB 3.1 Type A
    1 Serial
    2 RJ45 Network
    2 PS2
    1 Audio Line out
    1 Audio Line in/Microphone

Security

  • Trusted Platform Module (TPM 2.0); Optional CAC/PIV card reader for slimline bay, chassis Intrusion switch; Setup/BIOS Password; I/O Interface Security; Kensington® lock slot, Padlock ring, lockable power supply; Optional hard drive locking sleds (key lock), Dell Data Guardian, Dell Endpoint Security Suite Enterprise.

Dimensions

  • Height: 433 mm (17.13”) X Width: 218 mm (8.50”) X Depth: 566 mm (21.46”)
    Starting weight: 20.4kg (45.0 lb)

Regulatory

Xem thêm
Thuộc tính sản phẩm
Attribute nameAttribute value
ProcessorXeon® Silver
