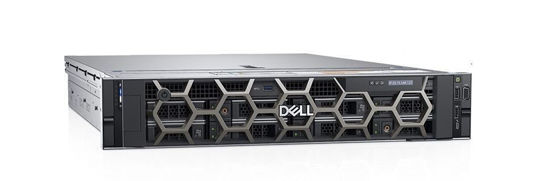

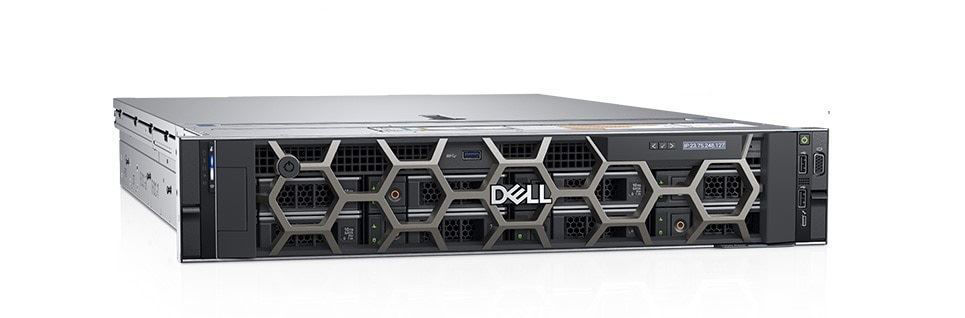

Precision 7920 Rack Workstation Gold 6240

  • 2 x Intel Xeon Gold 6240 2.6GHz, (3.9GHz Turbo, 18C, 10.4GT/s 3UPI, 24.75MB Cache, HT (150W) DDR4-2933)
  • Chipset: Intel® C621 (Lewisburg)
  • 256GB (4 x 64GB) DDR4 2933MHz RDIMM ECC Memory
  • Dell Ultra-Speed Drive Duo PCIe SSD x8 Card, 2 M.2 1TB PCIe NVMe Class 40 Solid State Drive
  • PERC H730P HW RAID Card 12Gbps SAS /SATA(6.0Gb/s) 2GB cache RAID 0/1/5/10
  • Nvidia Quadro RTX6000, 24GB, 4DP, VirtualLink (7920R)
  • Intel® i350-Quad port 1Gb Ethernet Network Daughter Card (4 x 1Gb ports)
  • Management: iDRAC9,Enterprise
  • Slots: All slots PCIe Gen 3. (6) PCIe full height/full length slots, (1) PCIe full height/half length slot, (1) PCIe low profile/full length slotUp to (3) double width x16 cards supported. All slots x16 mechanically.
  • 8 x 2.5” or 3.5” SATA/SAS drives, Up to 8 x M.2 NVMe PCIe SSDs
  • Optical Drive : Slimline DVD+/-RW SATA
  • Dell Multimedia Keyboard Black (English) & Dell Optical Mouse Black
  • Power Supply: Redundant hot pluggable 1100W –90% efficient (1/2)
  • Chassis: 19” rackmount rail kit, ReadyRails Sliding Rails With Cable Management Arm
  • OS License : Windows® 10 Pro for Workstation (4 Cores Plus) Multi - English
  • Warranty: 3 Year ProSupport and NBD On-site Service
Manufacturer: Dell
Call for pricing
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Processor

  • One or two Intel® Xeon® processor Scalable family CPUs with up to 28 cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro™ technology

Operating System

  • Windows 10 Pro (64 bit)
    Red Hat® Enterprise Linux® 7.3
    Ubuntu Linux 16.04

Memory1

  • Six channel memory up to 1.5TB 2666 MHz DDR4 ECC memory with dual CPUs, up to 3TB with select CPU SKUs (future availability) 24 DIMM Slots (12 DIMMs per CPU). Note: memory speed is dependent on specific Intel Xeon Processor Scalable processor installed

Hard Drive

  • Support for up to (8) 2.5" or 3.5" SATA/SAS drives, Up to 8 x M.2 NVMe PCIe SSDs via 2 x Dell Ultra-Speed Drive Quad x16 cards (maximum requires dual CPUs), NVMe RAID 0,1,10 option on 1st card (Intel RSTe vROC).
    PERC PCIe controllers required for SAS drive support
    M.2 NVMe PCIe SSDs
    Up to 8* x 1TB drives on 2 Dell Precision Ultra-Speed Drive Quad x16 cards. *Requires dual CPU config.
    2.5" SATA SSD
    Up to 8 x 1TB
    2.5" SAS SSD
    Up to 8 x 800GB
    2.5" SATA 7200 RPM 12Gb/s
    Up to 8 x 2TB
    3.5" SATA 7200 RPM 12Gb/s
    Up to 8 x 8TB
    2.5" SAS 10K RPM 12Gb/s
    Up to 8 x 1.8TB
    2.5" SAS 15K RPM 12Gb/s
    Up to 8 x 600GB

Video Card

  • Support for 3 PCI Express® x16 Gen 3 graphics cards1 - up to 900W with 3 x 300W double width graphics cards (dual CPU configuration) 1600W PSU recommended for maximum configurations and some restrictions apply

    High end 3D cards:
    Radeon™ Pro WX 9100
    Radeon™ Pro SSG (future)
    NVIDIA Quadro GP100
    NVIDIA Quadro P6000
    NVIDIA Quadro P5000

    Mid-range 3D cards:
    Radeon™ Pro WX 7100
    Radeon™ Pro WX 5100
    NVIDIA Quadro P4000
    NVIDIA Quadro P2000

    Entry 3D cards:
    NVIDIA Quadro P600
    NVIDIA Quadro P400
    Integrated VGA graphics motherboard connector (part of IDRAC9 Systems Management and requires IDRAC9 Enterprise license to enable)

    Professional 2D cards:
    NVIDIA NVS 310

Dimensions

  • Height: 86.8 mm (3.42") X Width: 482 mm (18.98") X  Depth: 715.5 mm (28.17")
    Weight: 28.6 kg (63.05 lb)

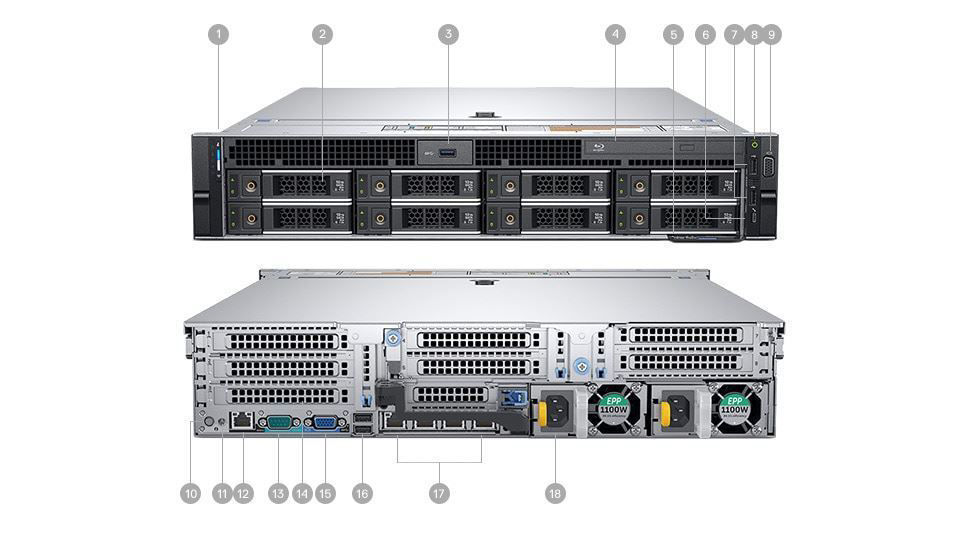

Ports

  • Front
    1 USB 2.0
    1 USB 2.0 Management port (IDRAC9)
    1 VGA Port for IDRAC9

    Internal
    1 SB 3.1 Type A – supports standard USB storage key SD Vflash media connector

    Rear
    2 USB 3.1 Type A
    4 RJ45 Network
    1 Serial
    1 RJ45 for IDRAC
    1 A VGA Port for IDRAC

Slots

  • All slots PCIe Gen 3.

    6 PCIe full height/full length slots
    1 PCIe full height/half length slot
    1 PCIe low profile/full length slot

Chipset

  • Intel® C621 (Lewisburg)

Chassis

  • Up to (3) double width x16 cards supported. All slots x16 mechanically.
    With single CPU – (1) x x16, (1) x x8, (1) x x8 half length, (1) x x8 low profile PCIe slots
    With dual CPUs (2) x x16, (2) x x8 PCIe slots

Regulatory

Xem thêm
Products specifications
Attribute nameAttribute value
ProcessorXeon® Gold
