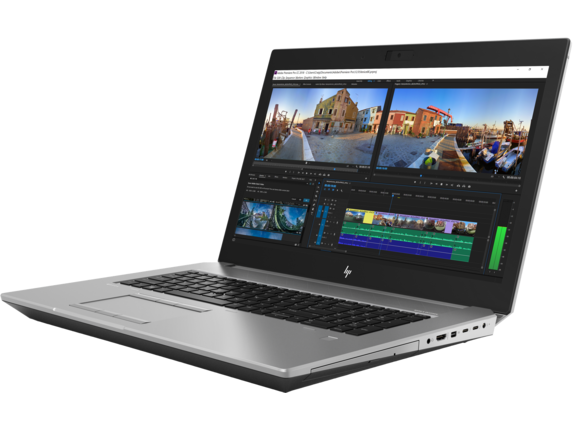

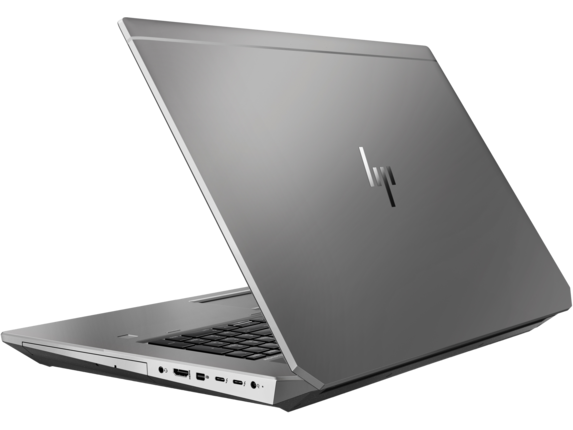

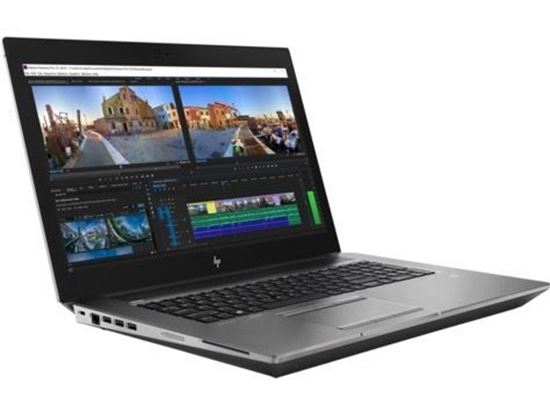

HP ZBook 17 G5 Mobile Workstation i7-8750H

Operating system

Windows 10 Pro 64 – HP recommends Windows 10 Pro. ¹
Windows 10 Home 64 ¹
Windows 10 Pro for Workstations 64 ¹
FreeDOS 2.0
Red Hat® Enterprise Linux® 7 - Web support only ³³
Ubuntu 16.04.3 LTS - Web support only ³³

Processor family

Intel® Xeon® processor (E-2176M, E- 2186M)
8th Generation Intel® Core™ i9 processor (i9-8950HK)
8th Generation Intel® Core™ i7+ processor (Core™ i7 and Intel® Optane™ memory) (i7-8750H, i7-8850H)
8th Generation Intel® Core™ i7 processor (i7-8750H, i7-8850H)
8th Generation Intel® Core™ i5+ processor (Core™ i5 and Intel® Optane™ memory) (i5-8300H, i5-8400H)
8th Generation Intel® Core™ i5 processor (i5-8300H, i5-8400H) ^{2,3,4,31,32,34}

Processor

Intel® Xeon® E 2186M vPro™ with Intel® UHD Graphics P630 (2.9 GHz base frequency, up to 4.8 GHz with Intel® Turbo Boost Technology, 12 MB cache, 6 cores)
Intel® Xeon® E 2176M vPro™ with Intel® UHD Graphics P630 (2.7 GHz base frequency, up to 4.4 GHz with Intel® Turbo Boost Technology, 12 MB cache, 6 cores)
Intel® Core™ i9 8950HK with Intel® UHD Graphics 630 (2.9 GHz base frequency, up to 4.8 GHz with Intel® Turbo Boost Technology, 12 MB cache, 6 cores)
Intel® Core™ i7+ 8850H vPro™ (Core™ i7 and 16 GB Intel® Optane™ memory) with Intel® UHD Graphics 630 (2.6 GHz base frequency, up to 4.3 GHz with Intel® Turbo Boost Technology, 9 MB cache, 6 cores)
Intel® Core™ i7 8850H vPro™ with Intel® UHD Graphics 630 (2.6 GHz base frequency, up to 4.3 GHz with Intel® Turbo Boost Technology, 9 MB cache, 6 cores)
Intel® Core™ i7+ 8750H (Core™ i7 and 16 GB Intel® Optane™ memory) with Intel® UHD Graphics 630 (2.2 GHz base frequency, up to 4.1 GHz with Intel® Turbo Boost Technology, 9 MB cache, 6 cores)
Intel® Core™ i7-8750H with Intel® UHD Graphics 630 (2.2 GHz base frequency, up to 4.1 GHz with Intel® Turbo Boost Technology, 9 MB cache, 6 cores)
Intel® Core™ i5+ 8400H vPro™ (Core™ i5 and 16 GB Intel® Optane™ memory) with Intel® UHD Graphics 630 (2.5 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Core™ i5 8400H vPro™ with Intel® UHD Graphics 630 (2.5 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Core™ i5+ 8300H (Core™ i5 and 16 GB Intel® Optane™ memory) with Intel® UHD Graphics 630 (2.3 GHz base frequency, up to 4.0 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Core™ i5-8300H with Intel® UHD Graphics 630 (2.3 GHz base frequency, up to 4.0 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores) ^{2,3,4,31,32,34}

Environmental

Low halogen ²⁵

Memory

Maximum memory

128 GB DDR4-2667 non-ECC SDRAM; 64 GB DDR4-2667 ECC SDRAM; 64 GB DDR4-2667 non-ECC SDRAM
(Transfer rates up to 2400 MT/s. )

Memory Slots

4 SODIMM

Storage

Internal drive

2 TB 5400 rpm SATA ⁶
500 GB up to 1 TB 7200 rpm SATA ⁶
500 GB 7200 rpm SATA SED ⁶
500 GB 7200 rpm SATA FIPS 140-2 SED ⁶
500 GB up to 2 TB 5400 rpm SATA SSHD ⁶
256 GB up to 1 TB SATA SSD ⁶
256 GB M.2 SATA SED SSD ⁶
512 GB M.2 SATA FIPS 140-2 SED SSD ⁶
256 GB up to 2 TB PCIe® NVMe™ M.2 SSD ⁶
256 GB up to 512 GB PCIe® NVMe™ M.2 SED SSD ⁶

Optical drive

2 TB Optical Solid State Hybrid Drive (SSHD)
Blu-ray player and DVD-Writer

Display and graphics

Display

• 17.3" diagonal FHD IPS eDP anti-glare LED-backlit with ambient light sensor, 300 cd/m² (1920 x 1080)
• 17.3" diagonal HD SVA eDP anti-glare LED-backlit, 220 cd/m² (1600 x 900)
• 17.3" diagonal 4K IPS eDP + PSR LED-backlit touch screen with Corning® Gorilla® Glass 4 and ambient light sensor, 400 cd/m² (3840 x 2160)
• HP DreamColor 17.3" diagonal 4K IPS anti-glare LED-backlit, 400 cd/m², 100% AdobeRGB (3840 x 2160)

 ⁹

Graphics

Integrated:
Intel® UHD Graphics 630
Intel® UHD Graphics P630
Discrete:
NVIDIA® Quadro® P1000 (4 GB GDDR5 dedicated)
NVIDIA® Quadro® P2000 (4 GB GDDR5 dedicated)
NVIDIA® Quadro® P3200 (6 GB GDDR5 dedicated)
NVIDIA® Quadro® P4200 (8 GB GDDR5 dedicated)
NVIDIA® Quadro® P5200 (16 GB GDDR5 dedicated)
AMD Radeon™ Pro WX 4170 (4 GB GDDR5 dedicated) ^9,10
(Intel® UHD Graphics 630 integrated on Core™ i7, Core™ i5 and Core™ i9 processors. Intel® UHD Graphics P630 integrated on Xeon® processors.)

Expansion features

Ports

Left side:
1 RJ-45
1 USB 3.0 (charging)
2 USB 3.0
Right side:
1 HDMI 2.0
1 headphone/microphone combo
1 power connector
1 Mini DisplayPort™ 1.3
2 USB 3.1 Type-C™ Thunderbolt™ 3 (DisplayPort™ 1.3)

Expansion slots

1 UHS-II SD card reader
1 smart card reader
(SD supports next generation secure digital and is backward compatible to SDHC, SDXC)

Audio

• HP tuned Bang & Olufsen, dual stereo speakers, HP World Facing Microphone supporting HP Noise Reduction software, dual array digital microphone, functions keys for volume up and down, combo microphone/headphone jack, HD audio, HP Clear Sound Amp

 ¹³

Camera

HP Privacy HD Camera 720p; HP Privacy HD IR Camera 720p, face authentication with Windows Hello ^9,12,14,30

Keyboard

HP Collaboration Keyboard, full-size, spill-resistant, backlit, with drain and DuraKeys, clickpad with image sensor and glass surface, multi-touch gestures and taps enabled ³³

Pointing device

Image sensor touchpad with on/off button, two-way scroll, gestures, three buttons; Pointstick with three additional pointstick buttons; Touchpad with Color Calibration Sensor ³⁷

Communications

Network interface

Integrated Intel® I219-LM GbE
(Optional Near Field Communication (NFC) module)

Power and operating requirements

Energy efficiency

ENERGY STAR® certified and EPEAT® Gold registered configurations available ²⁴

Power supply

• 200 W Slim Smart external AC power adapter

Battery type

• HP Long Life 6-cell, 96 Wh Li-ion polymer

Dimensions and weight

Dimensions (W x D x H)

16.4 x 11.3 x 1.3 in
(Height measurement taken at front of notebook.)

Weight

Starting at 7 lb (Starting at 3.2 kg)
(Weight varies by configuration and components.)

Security management

Security management

Absolute persistence module
Common Criteria EAL4+ Augmented Certified Discrete TPM 2.0 Embedded Security Chip
DriveLock and Automatic DriveLock
HP Device Access Manager
HP FingerPrint Sensor
HP Password Manager
HP Power On Authentication
HP Security Manager
Pre-boot authentication
HP Sure Click
Measured Boot
HP BIOS Config Utility (BCU)
HP Client Catalog
HP Driver Packs
HP System Software Manager (SSM)
HP Manageability Integration Kit Gen2
HP BIOSphere with Sure Start Gen4
HP Secure Disk Erase
HP Host Based Mac Address
Windows Defender ^{19,20,21,22,23,26,27,28,29}

What's included

Software

Bing search for IE11
Buy Office
HP ePrint Driver + JetAdvantage
HP Hotkey Support
HP Noise Cancellation Software
HP Performance Advisor
HP Recovery Manager
HP Remote Graphics Software
HP Support Assistant
HP Velocity
Skype for Business Certified
HP LAN-WLAN Protection
HP JumpStart
HP Client Security Suite Gen4 ^15,16,17,18

Warranty

3 year or 1 year limited warranty options available, depending on country. Batteries have the same 1 year or 3 year limited warranty as the platform. 24/7 operation will not void the HP warranty. Optional HP Care Pack Services are extended service contracts which go beyond your standard limited warranties.
