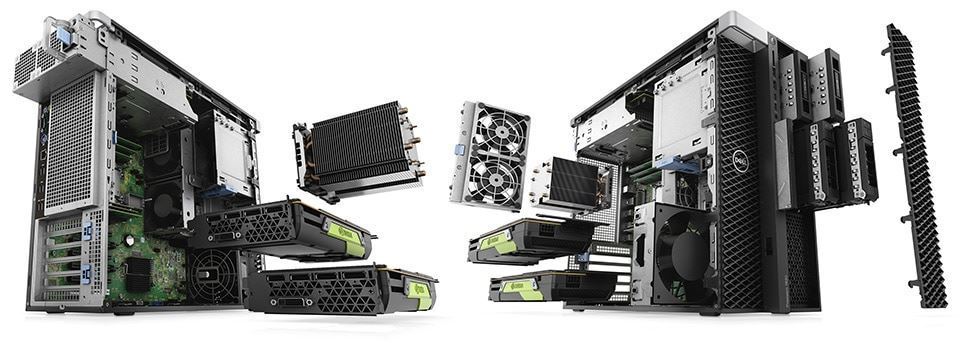

Dell Precision 7820 Tower Workstation Silver 4214

  • 1 x Intel Xeon Silver 4214 2.2GHz, 3.2GHz Turbo, 12C, 9.6GT/s 2UPI, 16.5MB Cache, HT (85W) DDR4-240
  • 64GB (4 x 16GB) 2666MHz DDR4 RDIMM
  • Nvidia Quadro RTX4000, 8GB, 3DP, VirtualLink (XX20T)
  • M.2 512GB PCIe NVMe Class 40 Solid State Drive
  • 2TB 3.5" Serial-ATA (7,200 RPM) Hard Drive
  • Integrated: Intel® i219 Gigabit Ethernet
  • Slots: (2)PCIe x16, (1)PCIe x16 wired as x8, (1)PCie x16 wired as x4, (1)PCIe x16 wired as x1, 1 PCI 32/33
  • 4 x 2.5”/3.5” SATA HDD/SSDs
  • 8x Slimline DVD-ROM Drive
  • Dell Multimedia Keyboard Black
  • Dell Optical Mouse Black
  • OS License : Ubuntu Linux 16.04
  • Power Supply: 950W –90% efficient (80PLUS Gold Certified)
  • Warranty: 3 Year ProSupport and NBD On-site Service
Nhà sản xuất: Dell
99.500.000 ₫ (Giá đã có VAT)
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Processor

  • One or two Intel® Xeon® processor Scalable family CPUs with up to 28 cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro™ technology

Operating System

  • Windows 10 Pro (64 bit)
    Red Hat® Enterprise Linux® 7.3
    Ubuntu Linux 16.04
    NeoKylin 6.0 SP3 (China only)

Chipset

  • Intel® C621 (Lewisburg)

Memory1

  • Six channel memory up to 384GB 2667MHz DDR4 ECC memory with dual CPUs, 12 DIMM Slots
    (6 DIMMs per CPU).
    Note: Memory speed is dependent on specific Intel Xeon Processor Scalable Family processor installed.

Video Card

  • Support for 2 PCI Express® x16 Gen 3 graphics cards1 - up to 500W with maximum of 2 x 250W double width graphics cards on single CPU configurations. Up to 2 x 150W single width graphics cards on dual CPU configurations.

    High end 3D cards:
    Radeon™ Pro WX 9100
    Radeon™ Pro SSG (future)
    NVIDIA Quadro GP100
    NVIDIA Quadro P6000
    NVIDIA Quadro P5000

    Mid-range 3D cards:
    Radeon™ Pro WX 7100
    Radeon™ Pro WX 5100
    Radeon™ Pro WX 4100
    NVIDIA Quadro P4000
    NVIDIA Quadro P2000

    Entry 3D cards:
    Radeon™ Pro WX 3100
    Radeon™ Pro WX 2100
    NVIDIA Quadro P1000
    NVIDIA Quadro P600
    NVIDIA Quadro P400

    Professional 2D cards:
    NVIDIA NVS 310
    NVIDIA NVS 315

Hard Drive

  • Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 6 x 2.5” and 5 x 3.5” drives with 5.25” bay populated.
    Up to 2 front accessible (hot plug) M.2 NVMe PCIe SSDs are supported in FlexBays on enabled PCIe chassis with integrated Intel controller.
    NVMe RAID 0,1 option (Intel RSTe vROC). Dell M.2 carrier with PCIe SSD for PCIe FlexBay available
    as customer kit.
    Up to 4 x M.2 NVMe PCIe SSDs via 1 x Dell Ultra-Speed Drive Quad x16 card. NVMe RAID 0,1,10 option (Intel RSTe vROC)
    M.2 NVMe PCIe SSDs
    Up to 4 x 1TB drives on 1 Dell Precision Ultra-Speed Drive Quad x16 cards.
    Front FlexBay M.2 NVMe PCIe SSDs
    Up to 2 x 1TB drives
    2.5” SATA SSD
    Up to 6 x 1TB drives
    2.5” SAS SSD
    Up to 6 x 800GB drives
    3.5” SAS 7200 RPM 12Gb/s
    Up to 5 x 4TB
    2.5” SAS 10K RPM 12Gb/s
    Up to 6 x 1.8TB
    2.5” SAS 15K RPM 12Gb/s
    Up to 6 x 900GB
    2.5” Self Encrypting Drives
    512GB 2.5” SED (OPAL/ FIPS (140-2) HDD
    M.2 PCIe SED SSD
    512GB and 1TB Intel®

Communications

  • Integrated: Intel® i219 Gigabit Ethernet controllers with Intel Remote Wake UP, PXE and Jumboframes support
    Optional: Intel® i210 10/100/1000 single port PCIe (Gen 3 x1) gigabit network card, Intel® X550-T2 10GbE dual port PCIe (Gen 3 x4) network card, Aquantia AQN-108 2.5Gbit/5Gbe single port PCIe (Gen3 x4) network card

Chassis

  • Bays: (2) FlexBays and (1) 5.25” FlexBay (can support 1 x 3.5” or 2 x 2.5” HDD/SSD drives as factory option or customer kit)
    (1) Slimline optical bay; (1) SD slot UHS ll Class 3 with read only support (SW enabled).Available PCIe chassis with PCIe FlexBays supporting M.2 NVMe PCIe SSDs and future U.2 NVMe PCIe SSDs. PCIe FlexBay customer kit available.

Ports

  • Front
    2 USB 3.1 Type A
    2 USB 3.1 Type C
    1 Universal Audio Jack
    Up to 2 (future 4) PCIe slots in PCIe enabled chassis for M.2 and U.2 (future) PCIe SSDs

    Internal
    1 USB 2.0
    1 USB 2.0 header. (requires 3rd party splitter cable to support 2 USB 2.0 Type A ports)
    8 SATA @6Gb/s plus 1 SATA for optical

    Rear
    6 USB 3.1 Type A
    1 Serial
    1 RJ45 Network
    2 PS2
    1 Audio Line out
    1 Audio Line in/Microphone

Security

  • Trusted Platform Module (TPM 2.0); Optional CAC/PIV card reader for slimline bay, chassis Intrusion switch; Setup/BIOS Password; I/O Interface Security; Kensington® lock slot, Padlock ring, lockable power supply; Optional hard drive locking sleds (key lock), Dell Data Guardian, Dell Endpoint Security Suite Enterprise

Dimensions

  • Height: 417.9 mm (16.45”) X Width: 176.5 mm (6.95”) X Depth: 518.3 mm (20.41”). Optional 19” rackmount rail kit.
    Starting weight: 15.9kg (35.1 lb)

Slots

  • All slots PCIe Gen 3
    2 PCIe x16
    1 PCIe x16 wired as x8
    1 PCie x16 wired as x4
    1 PCIe x16 wired as x1
    1 PCI 32/33

Regulatory

Xem thêm
Thuộc tính sản phẩm
Attribute nameAttribute value
ProcessorXeon® Silver
